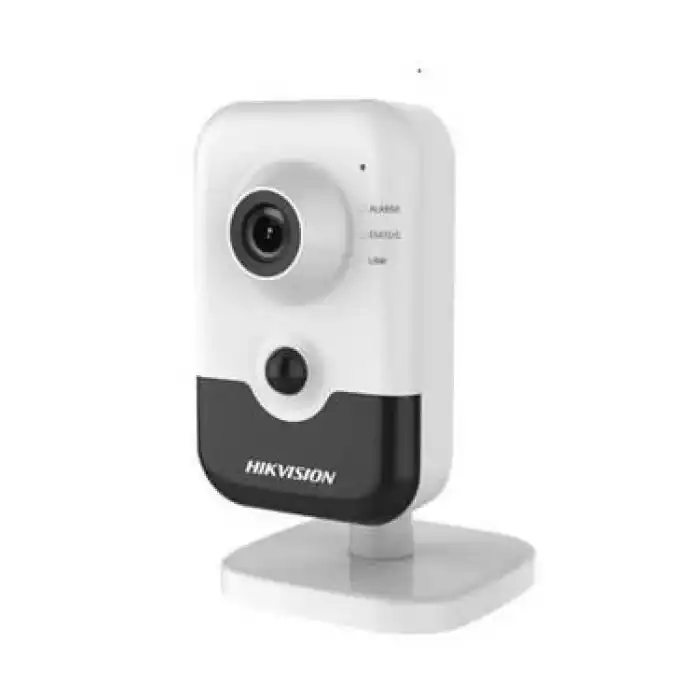

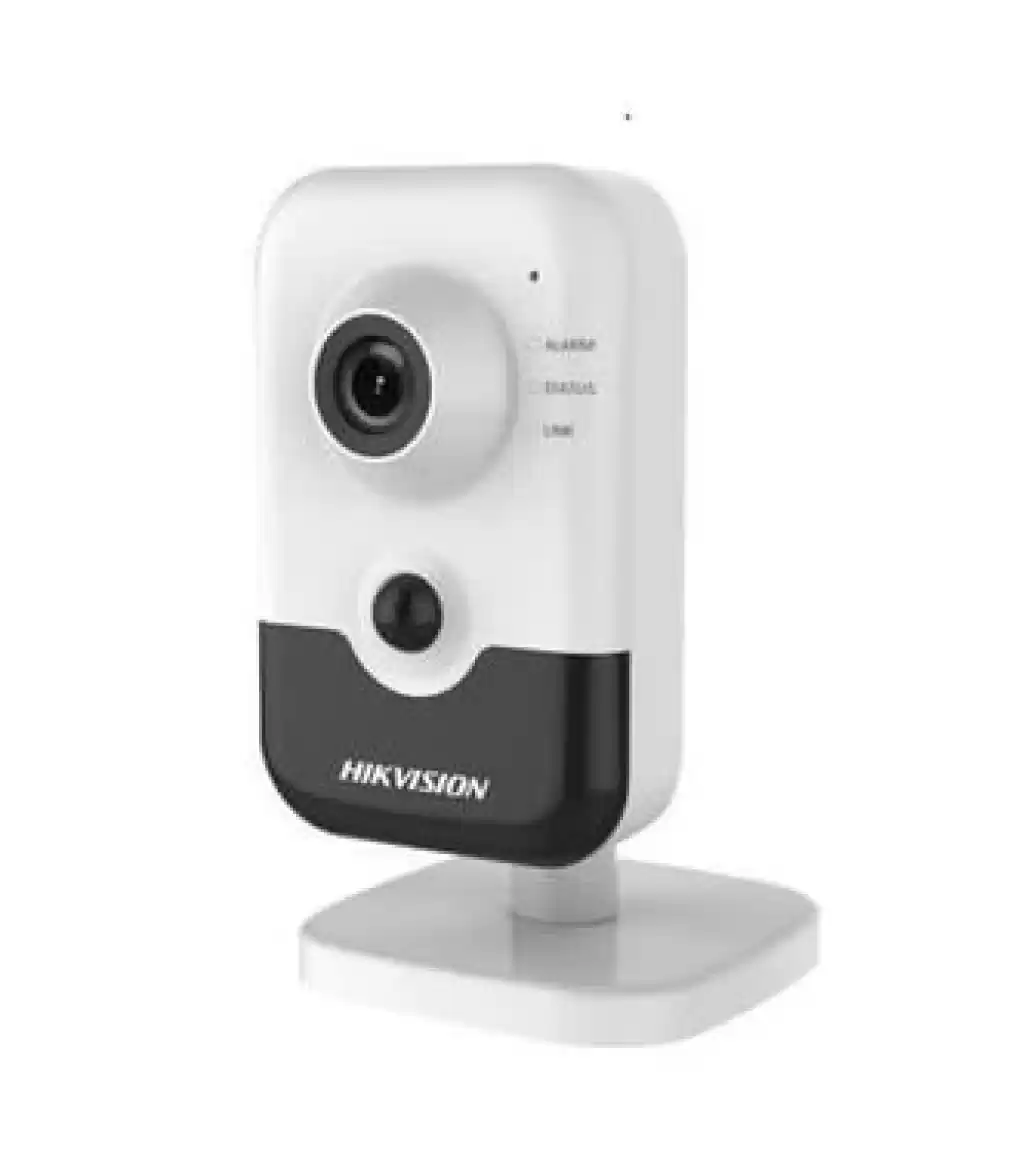

Name: HIKVISION DS-2CD2421G0-IW 2MP 2.8MM SESLİ IP KÜP KAMERA (Wİ-Fİ)
Brand: HIKVISION
SKU: MK3MK40HAI0019

HIKVISION DS-2CD2421G0-IW 2MP 2.8MM SESLİ IP KÜP KAMERA (Wİ-Fİ)

Ürün Kodu: MK3MK40HAI0019

Barkod: 6941264024729

Marka: HIKVISION

Kategori: Bullet Kameralar

Havale/EFT ile 2.151,98 TL

184,88 TL 'den başlayan taksitlerle

2.218,53 TL

Kamera
Image Sensor1/2.7" Progressive Scan CMOS
Min. Illumination
2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Max. Resolution1920 × 1080
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens TypeFixed focal length, 2, 2.8, and 4 mm optional
Focal Length & FOV
2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4°
2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6°
4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
Iris TypeFixed
Aperture
2 mm: F2.25
2.8 mm: F1.6
4 mm: F1.6
Lens MountM12

DORI
DORI
2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m
2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m
4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

Illuminator
Supplement Light RangeUp to 10 m
IR Wavelength850 nm
Smart Supplement LightYes

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)
Yes
Region Of Interest (ROI)1 fixed region for main stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE
User/HostUp to 32 users. 3 levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi
Encryption Mode-IW: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol
-IW:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Frequency Range
-IW:
2.412 GHz - 2.472 GHz
Channel Bandwidth
-IW:
20/40 MHz
Modulation
-IW:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Transfer Rate
-IW:
11b/g: 54 Mbps
11n: up to 150 Mbps
Wireless Range-IW: Up to 50 m (The performance varies based on actual environment)

Wide Dynamic Range (WDR)120 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, 3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

PIR
PIR AngleHorizontal: 90°, vertical: 80°
PIR RangeUp to 8 m

Interface
Built-In MicrophoneYes
Built-In SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic EventMotion detection, video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General
Power
-I:
12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
-IW:
12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Dimension
2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1")
2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6" × 1.3")"
Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Approx. 115 g (0.3 lb.)
With Package WeightApprox. 330 g (0.7 lb.)

Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RF
-IW:
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
Safety
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
